STS-126 Payload / ULF-2

Space Shuttle Endeavour STS-126 was launched on Nov 14th, 2008 to the International Space Station carrying for the fifth time the Multipurpose Logistic Module "Leonardo" and a spare hardware for the station, the FHRC. The main objective was to provide additional capability to house astronauts and to increase the station crew size from three to six crew members by spring 2009.

During an EVA, the FHRC was moved to the ESP-3 replacing the empty NTA, which was moved to the payload bay for return to Earth.

For this model, the payload detail was made possible thanks to NASA's photo Gallery. It is a FREE model because all the elements have been released separately from other missions.

UPDATE!

This file has been revised with the addition of the FHRC payload to be placed on the ESP-3.

Enjoy this model!



PAYLOADS
KU-band antenna (bay 1) Starboard
Remote manipulator Arm: port side
Orbiter Boom Sensor System (OBSS): Starboard

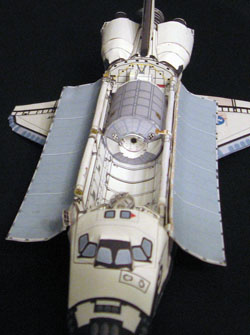

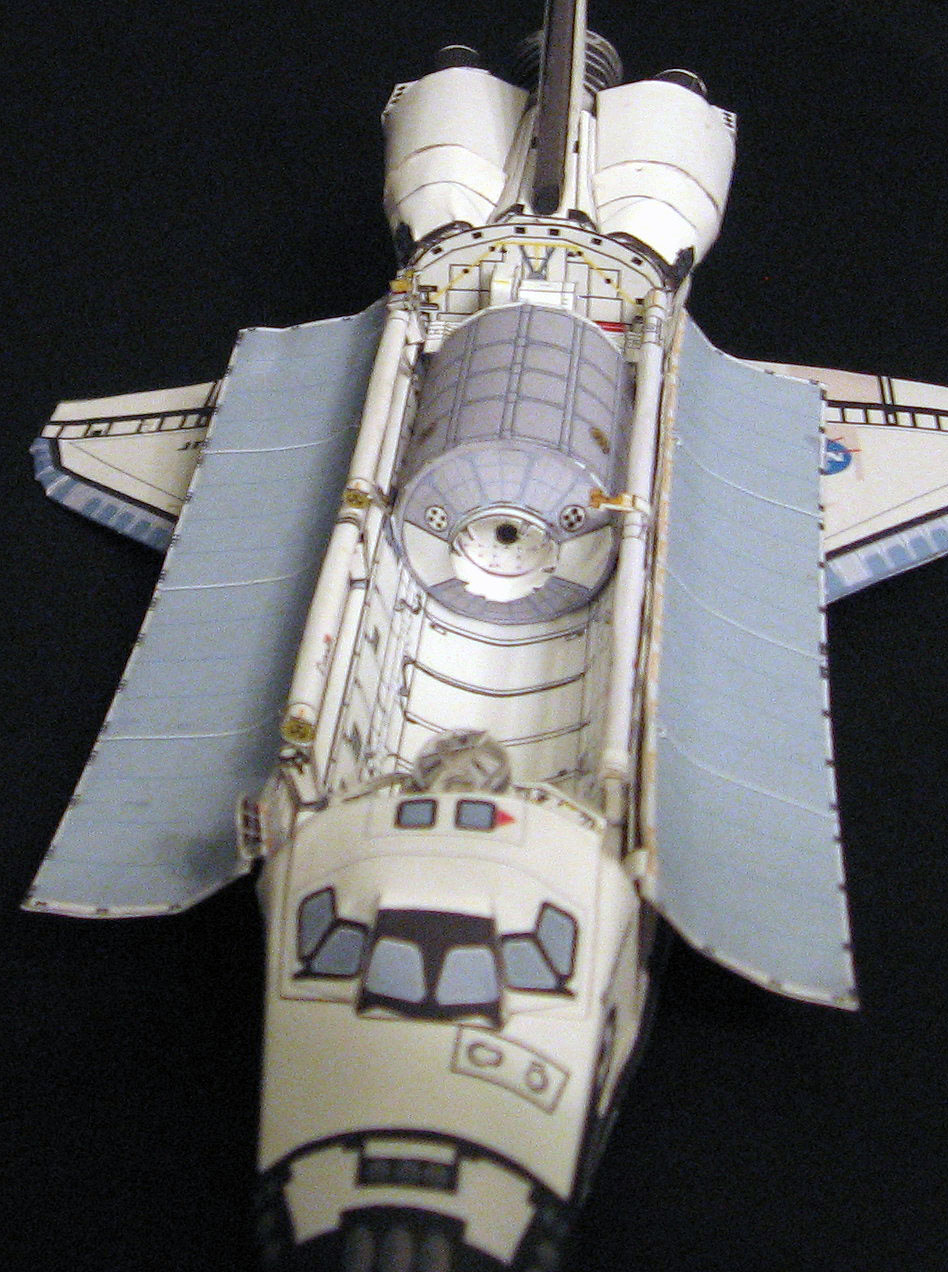

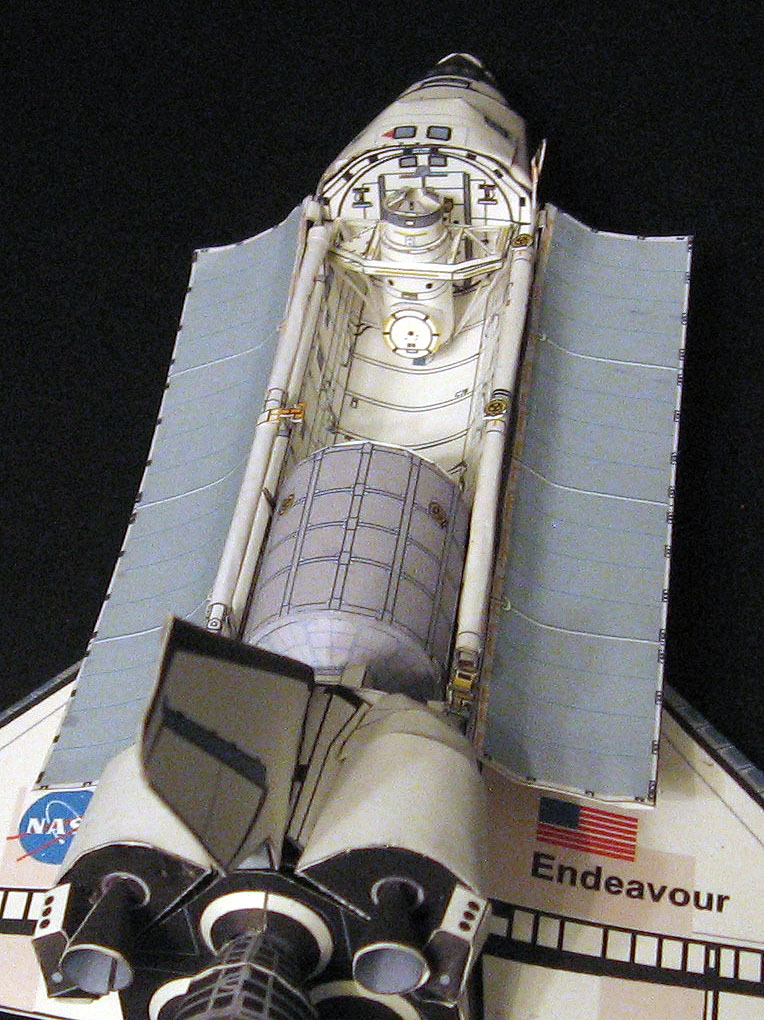

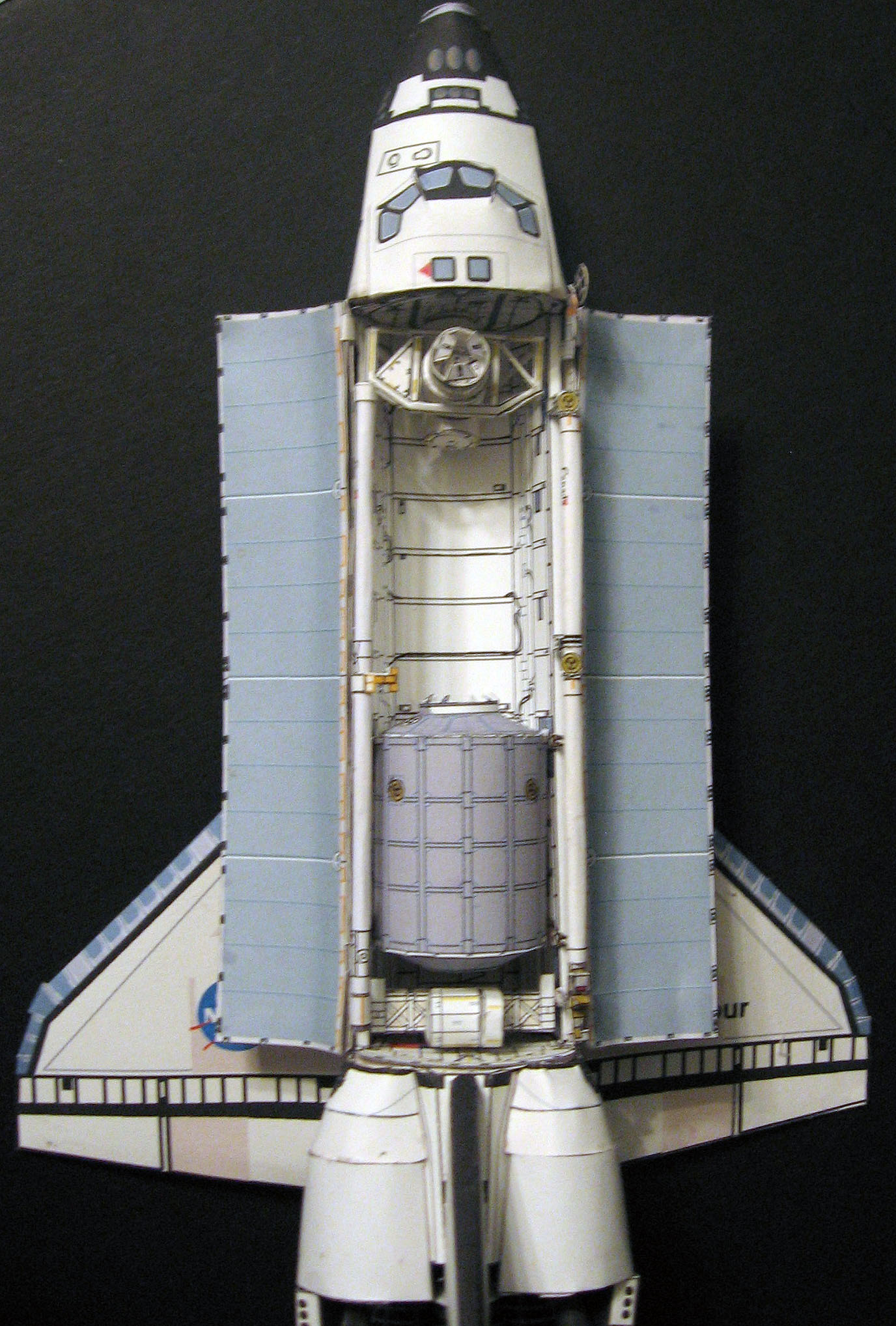

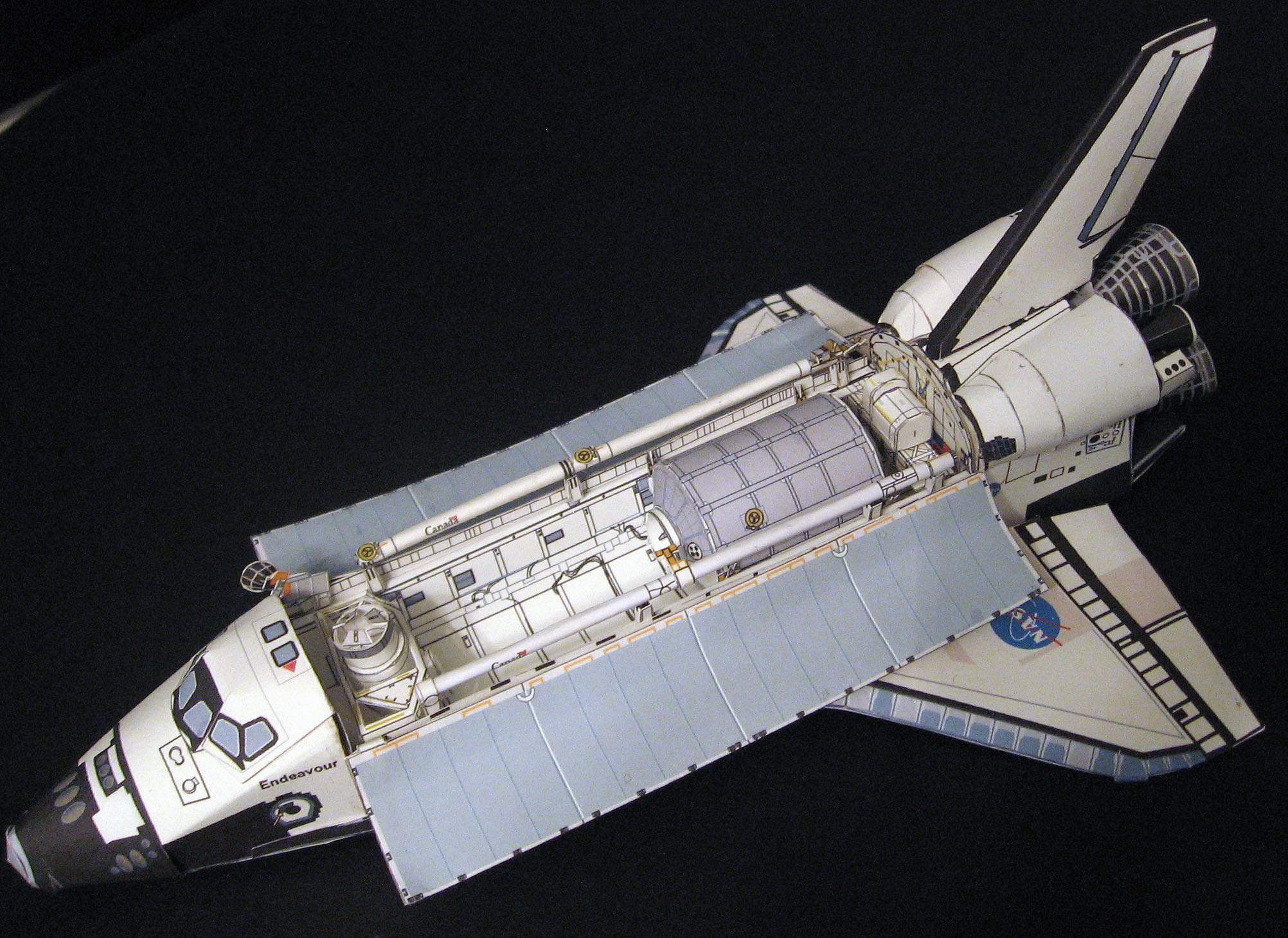

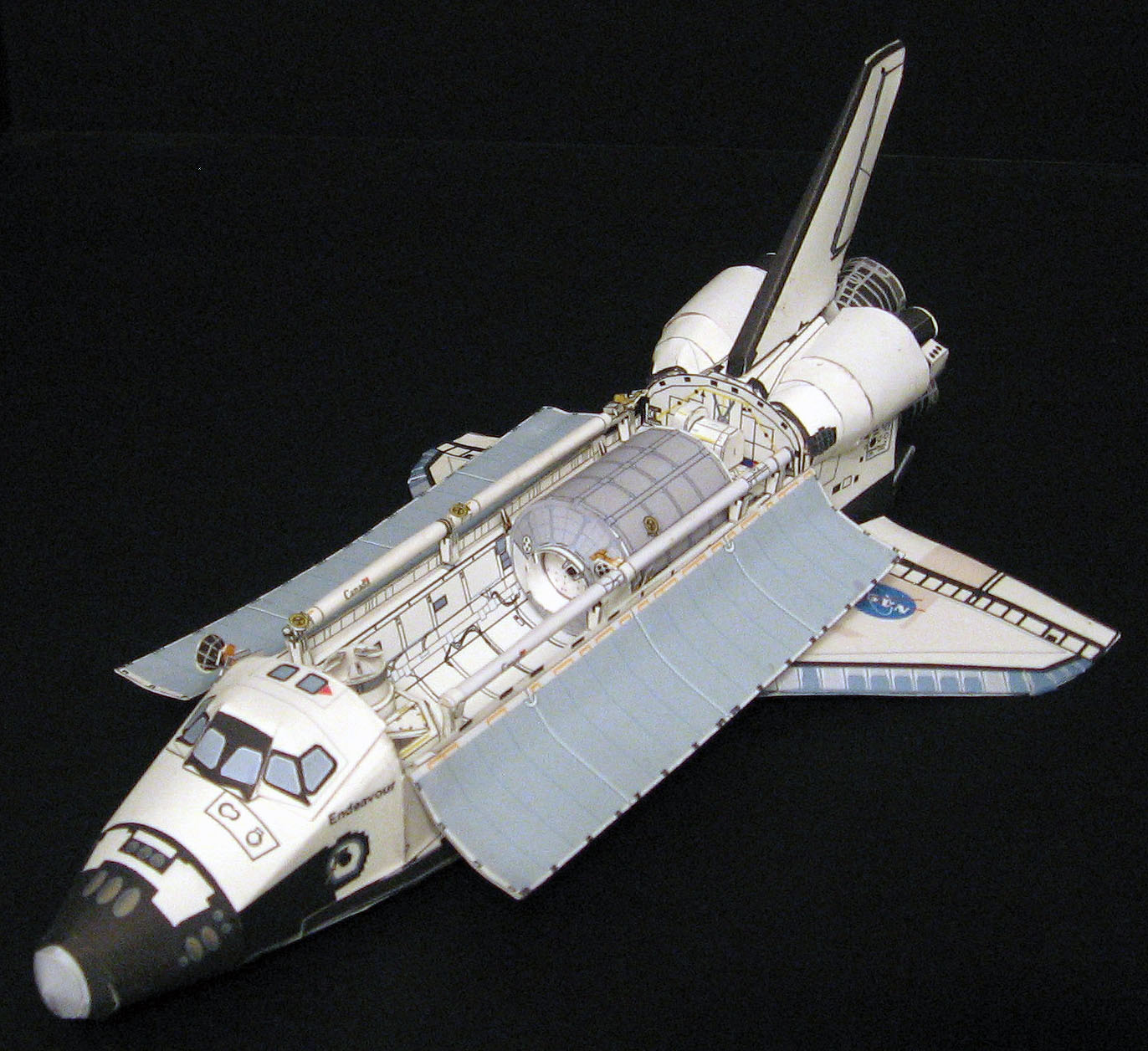

"Leonardo" MPLM: bays 8 - 11

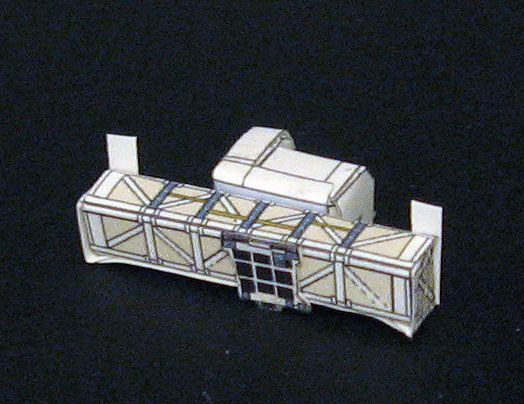

LMC: FHRC bay 13





Download Files:



Orbiter file
endmodif3.pdf (1.24 mb)

Payload
sts126pld.pdf ( 1.9 mb)





Payload Assembly Manual (1.35 mb)











Second ESP-3 Configuration

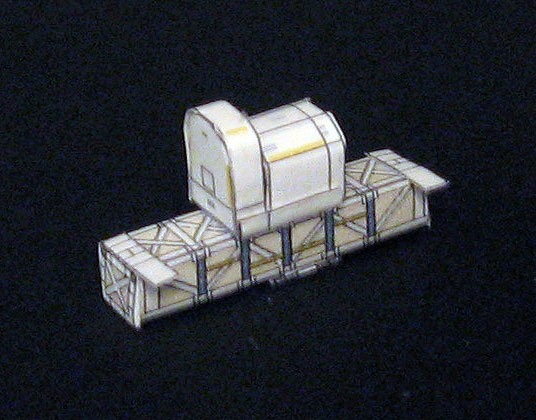

Original ESP-3 configuration

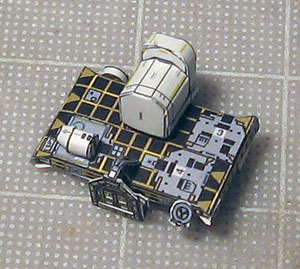

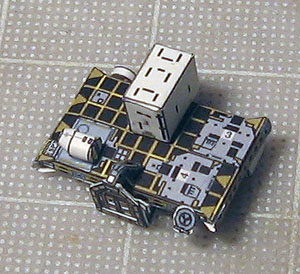

NTA replaced by FHRC

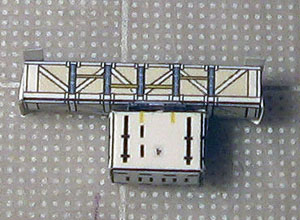

NTA attached to the LMC for return to Earth





BONUS

"Leonardo" Multipurpose Logistic Module in 1:100 scale

(674 kb) Revision July 09



Leonardo artwork by AXM

ULF-2 patch source: www.spacefacts.de
