STS-130 Payload / 20A / "TRANQUILITY" Node 3

Space Shuttle Endeavour was scheduled for launch on Feb 7, 2010 but was scrubbed due to poor weather.

On Feb 8, 2010 at 4:14 am it was successfully launched on its penultimate voyage carrying the last US segment module, the "Tranquility" Node 3 and the Cupola.

Node 3 "Tranquility" will provide additional room for crew members and many of the station's life support and environmental control systems. Attached to Node 3 is the Cupola, which is a robotic control station with six windows around its sides and another in the center that will provide a panoramic view of Earth, celestial objects and visiting spacecrafts.

Several robotic operations via the Space Station Robotic Arm were performed along with 3 spacewalks.

The photos shown on this presentation, demonstrate the robotic operations that took place during this highly successful mission.

This papermodel was made possible through sources from NASA website, NASA photo gallery and Robotics documentation.

This model is available via Paypal in both scales, 1:144 and 1:100.

Enjoy!

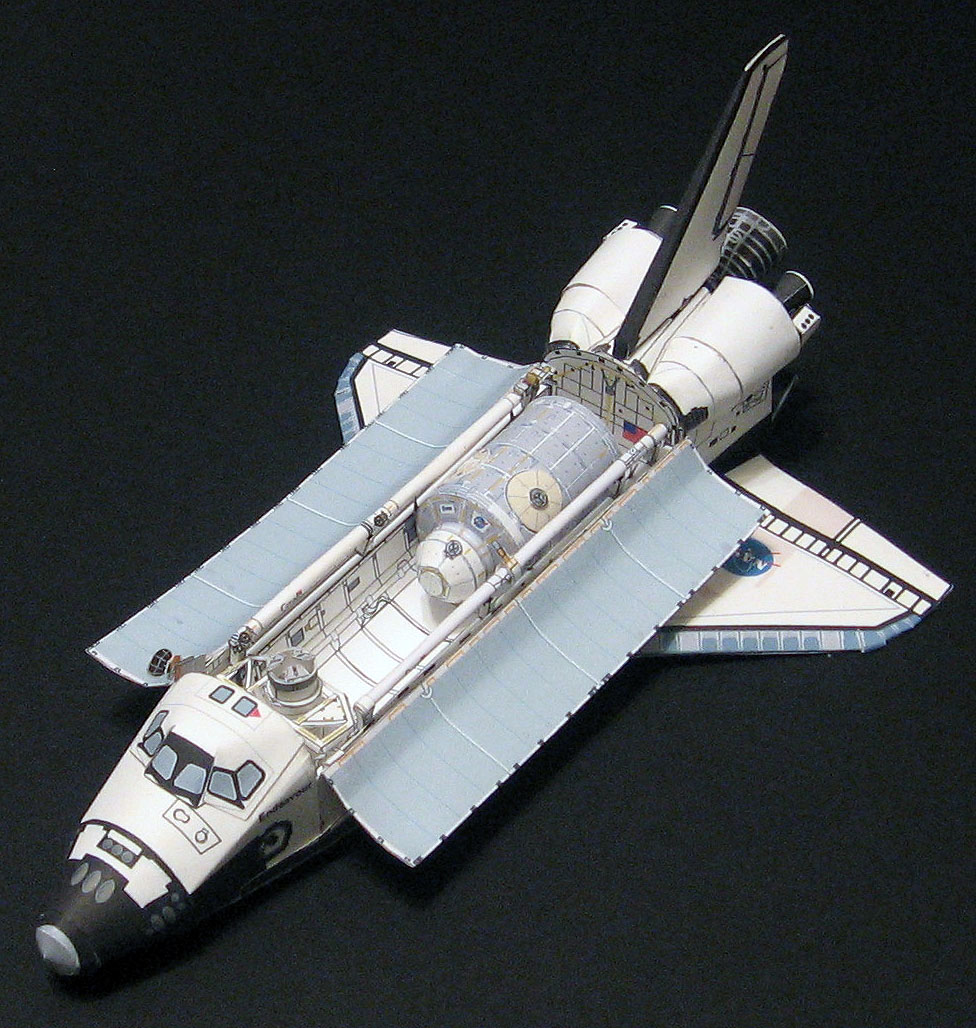

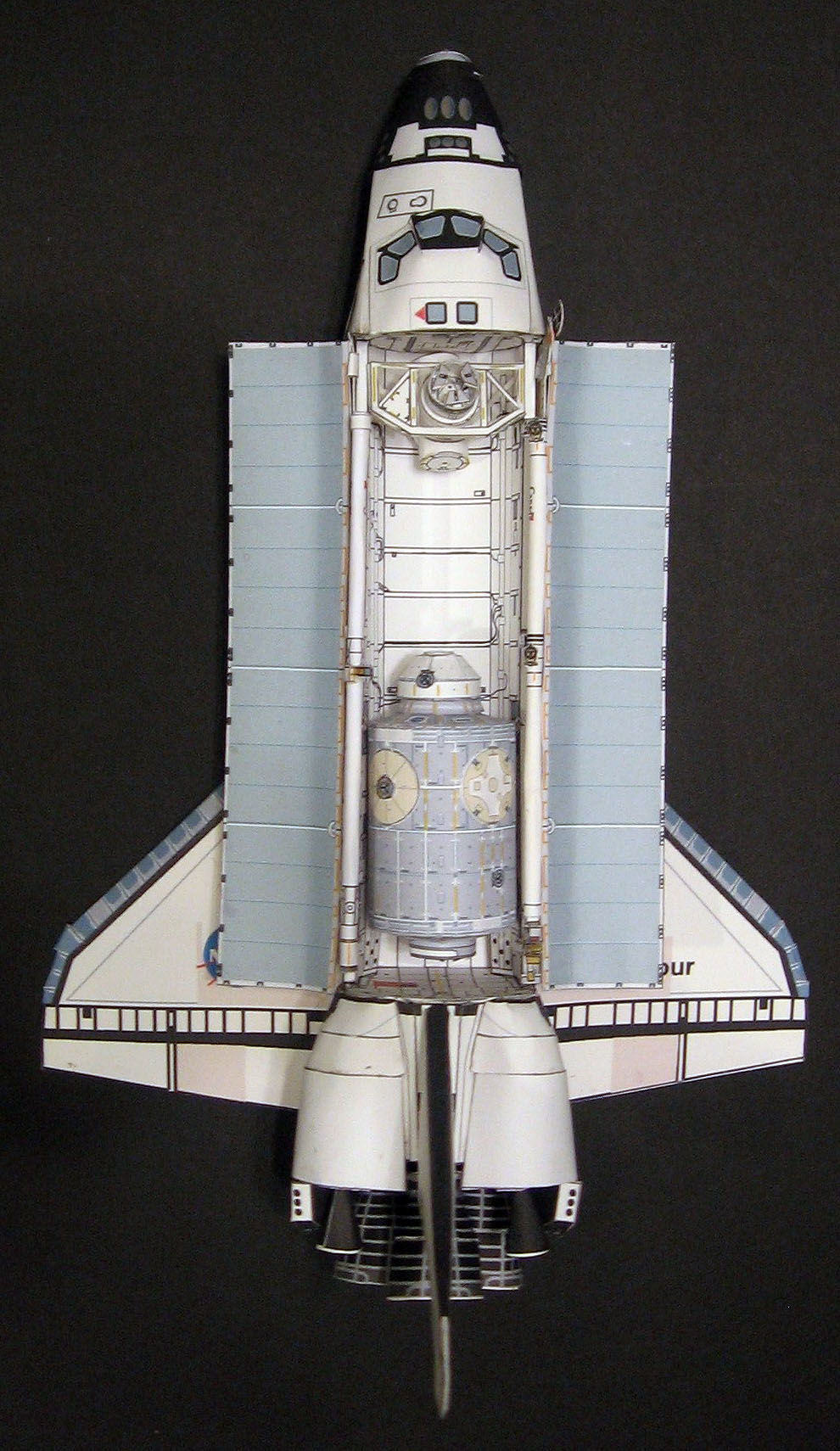

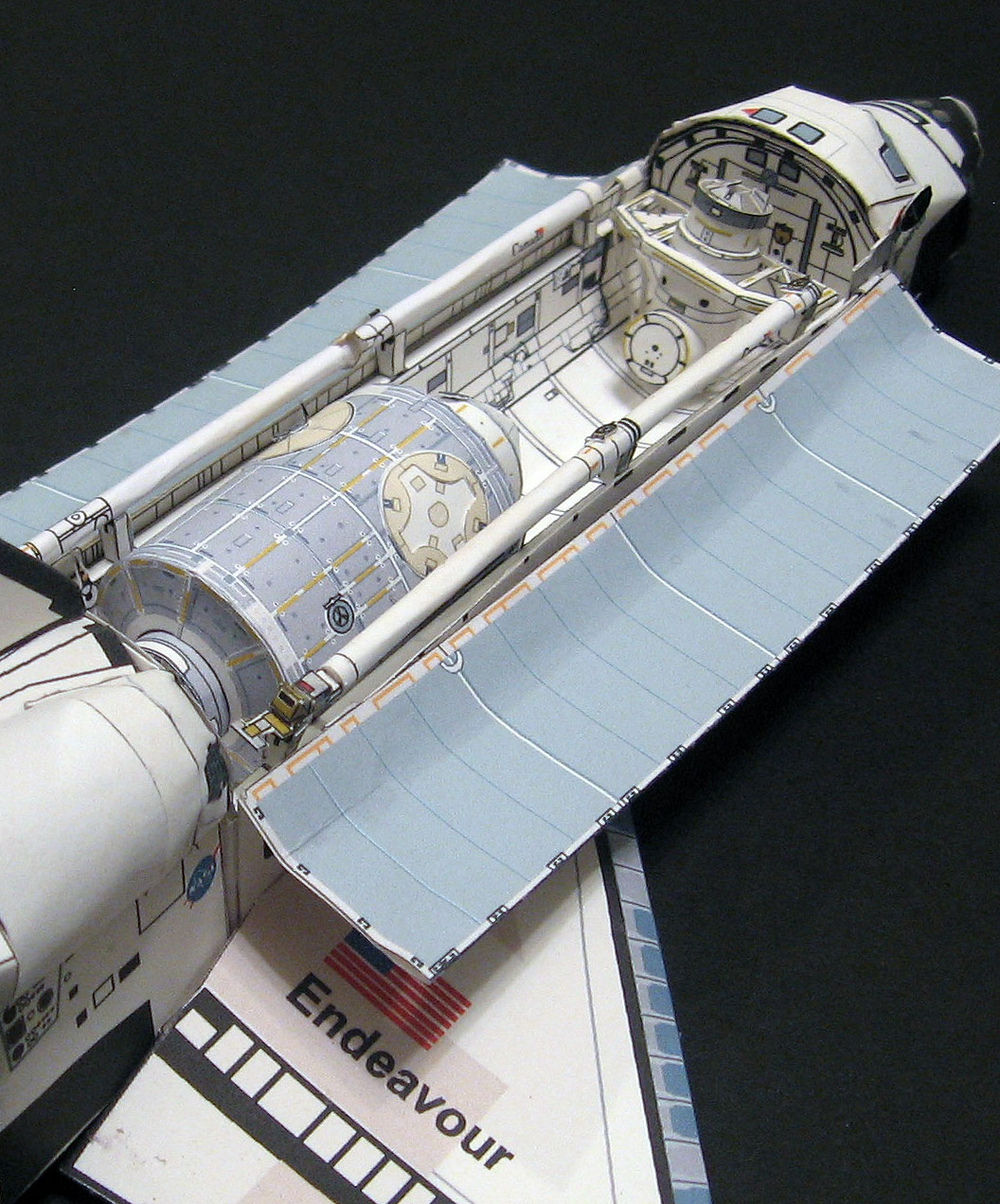

PAYLOADS
KU-band antenna (bay 1) Starboard
Remote manipulator Arm: port side
Orbiter Boom Sensor System (OBSS): Starboard
Orbiter Docking System (bays 1-2)

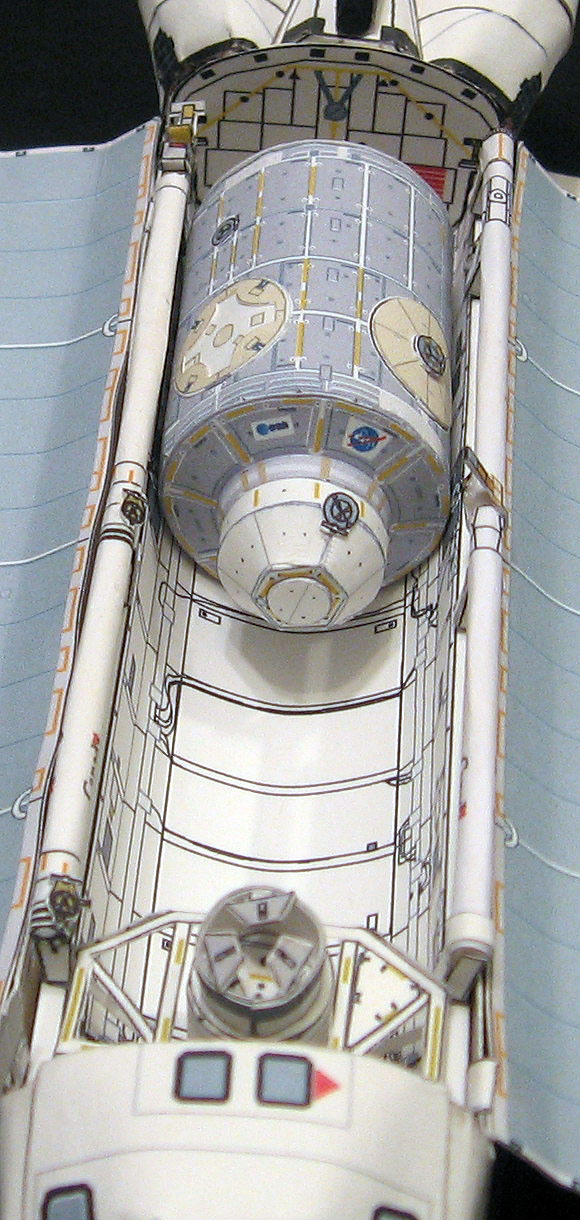

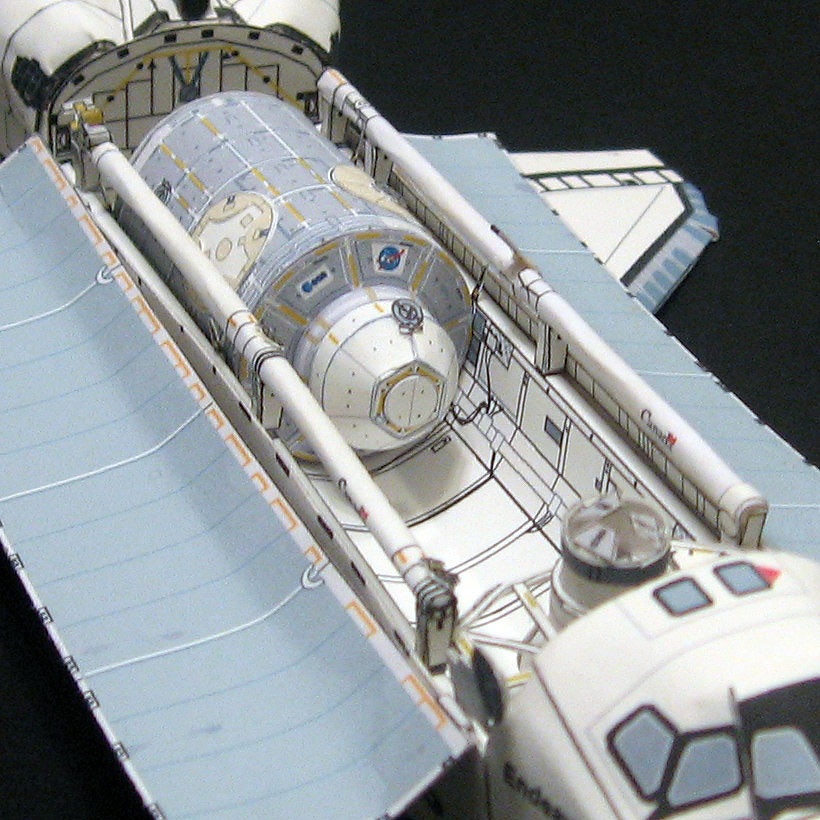

"Tranquility" Node 3 (bays 8-11)






Download Files:



Orbiter file
endmodif3.pdf (1.24 mb)

Payload

Available via Paypal on Download page 5






Payload Assembly Manual

3.4 mb







STS-130 launch view from Port St Lucie, FL (AXM property-All Rights Reserved)

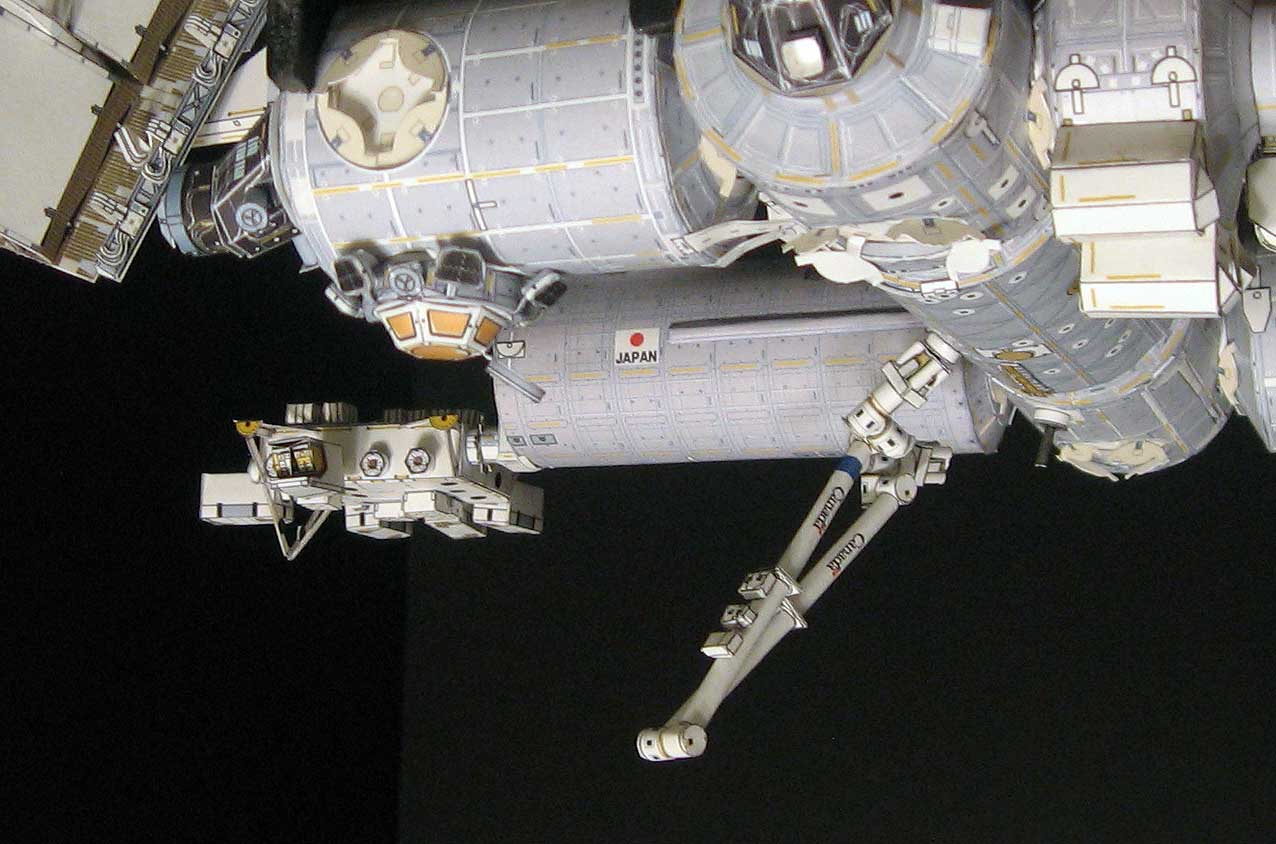

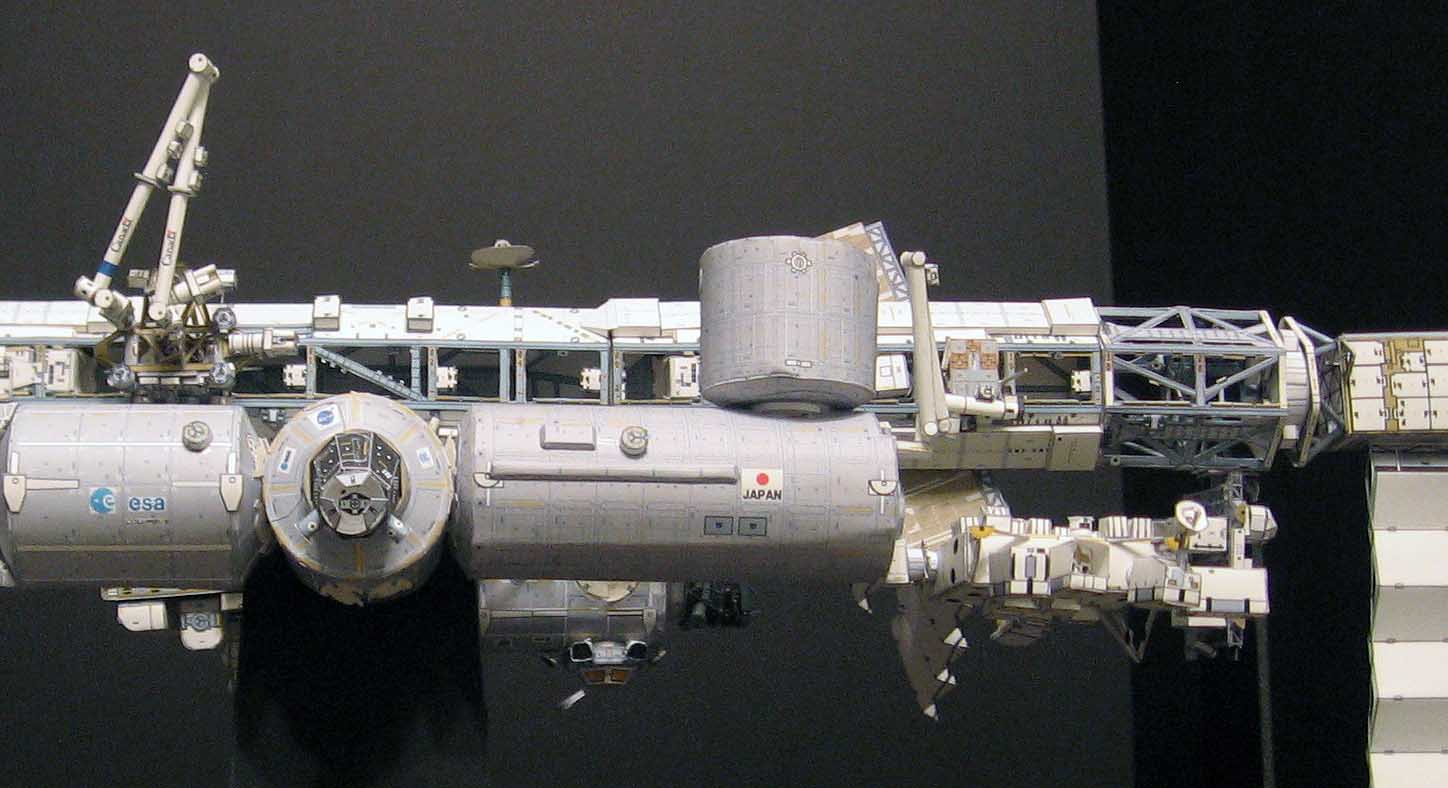

Preparing ISS for Node3 (Robotics)



PMA-3 in preparation for removal from port side of UNITY

PMA-3 is moved via robotic maneuver



PMA-3 is placed on Harmony's zenith port on Jan 25, 2010

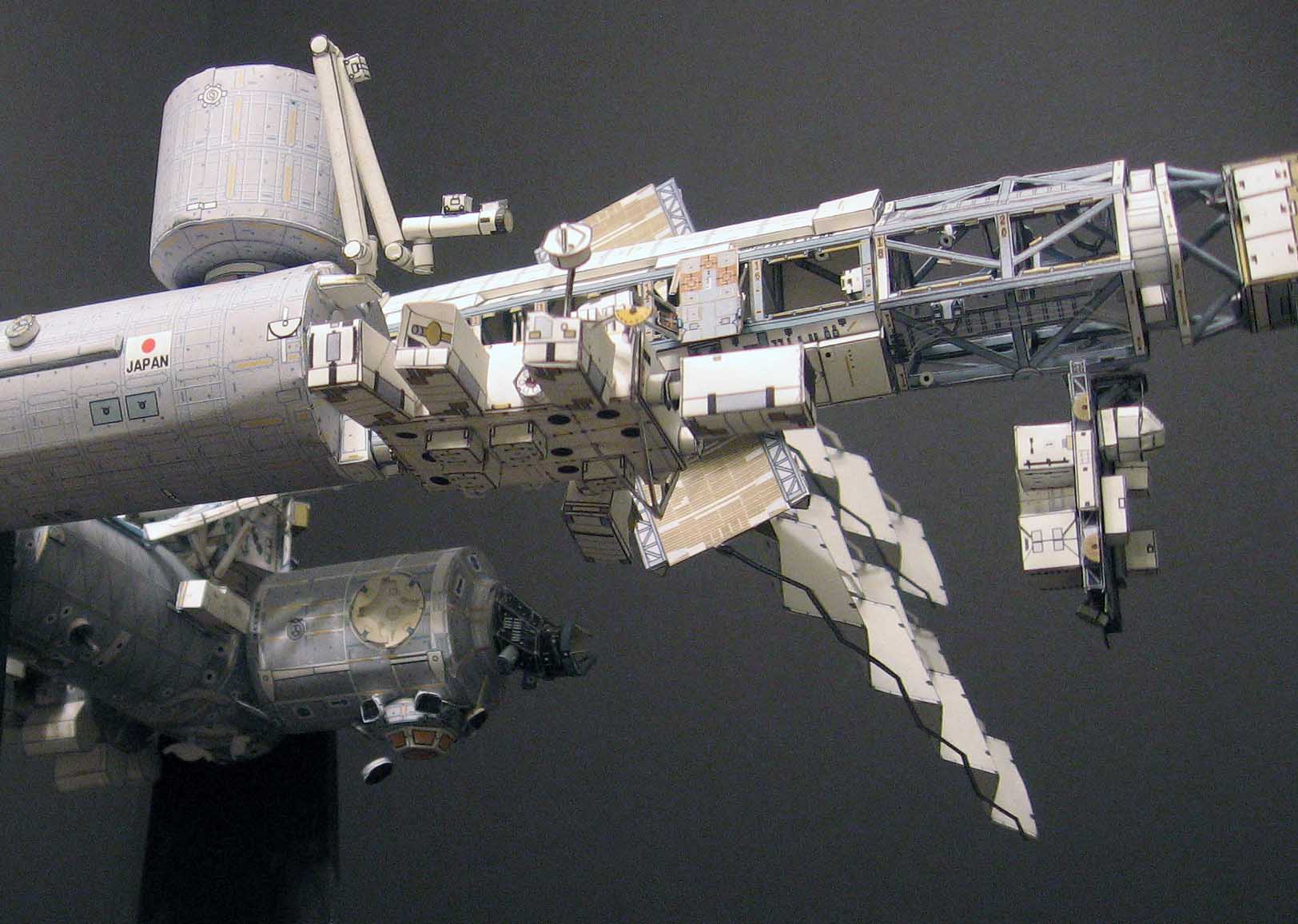

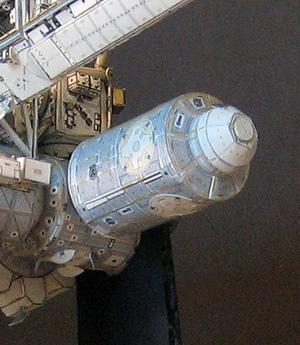

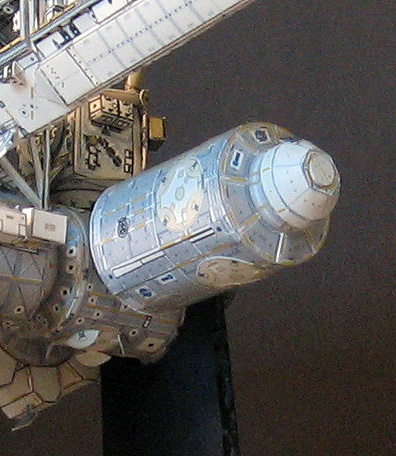

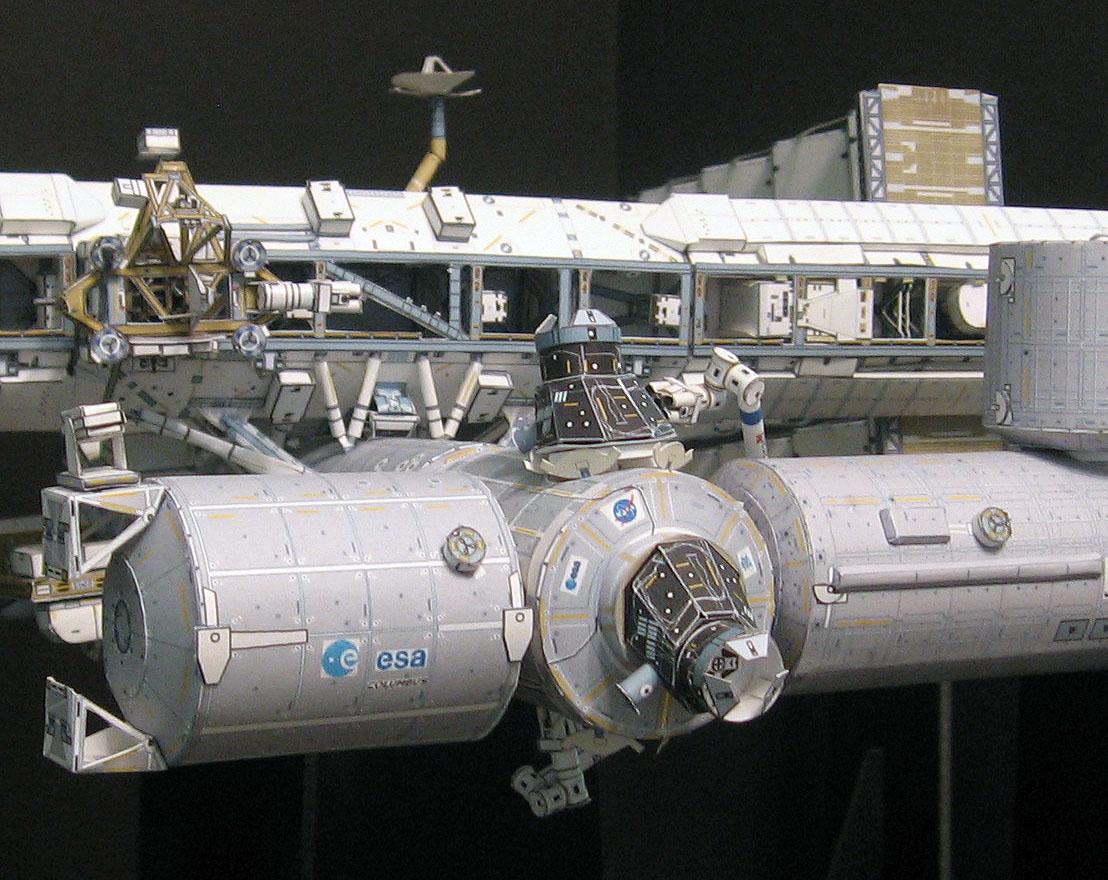

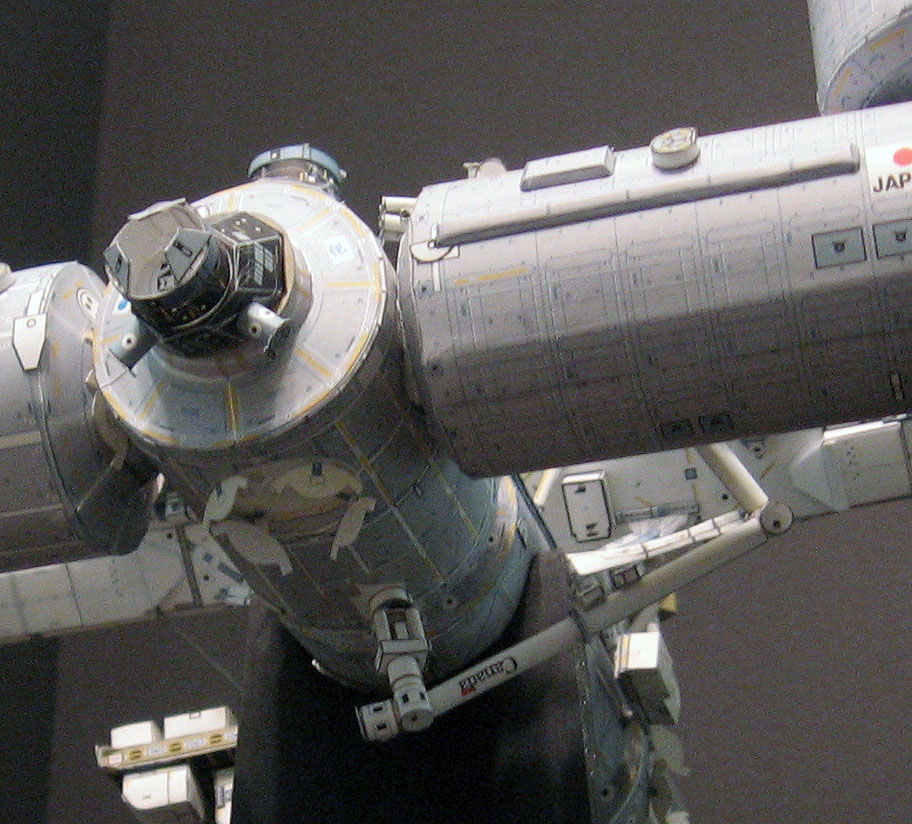

Node 3 is attached to the port side of Unity

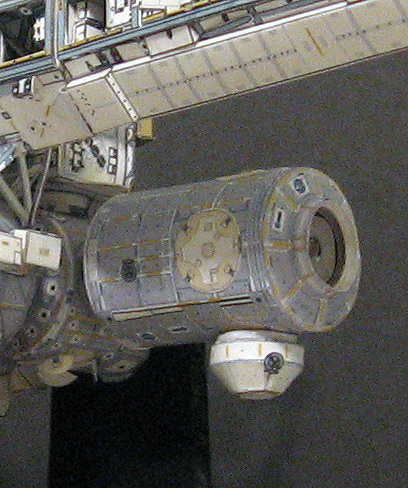

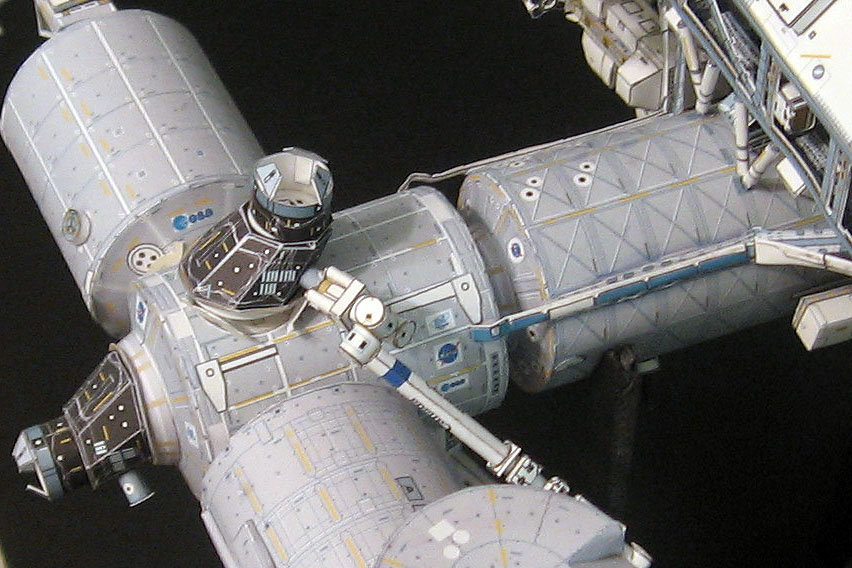

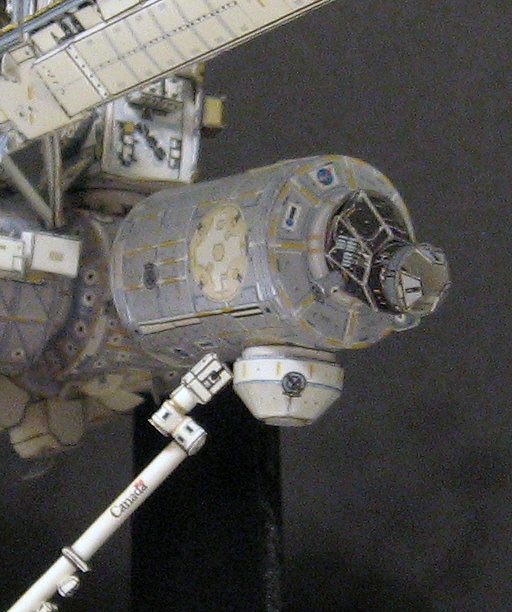

Cupola is relocated to nadir side of "Tranquility"



PMA-3 is relocated to berthing port of "Tranquility"

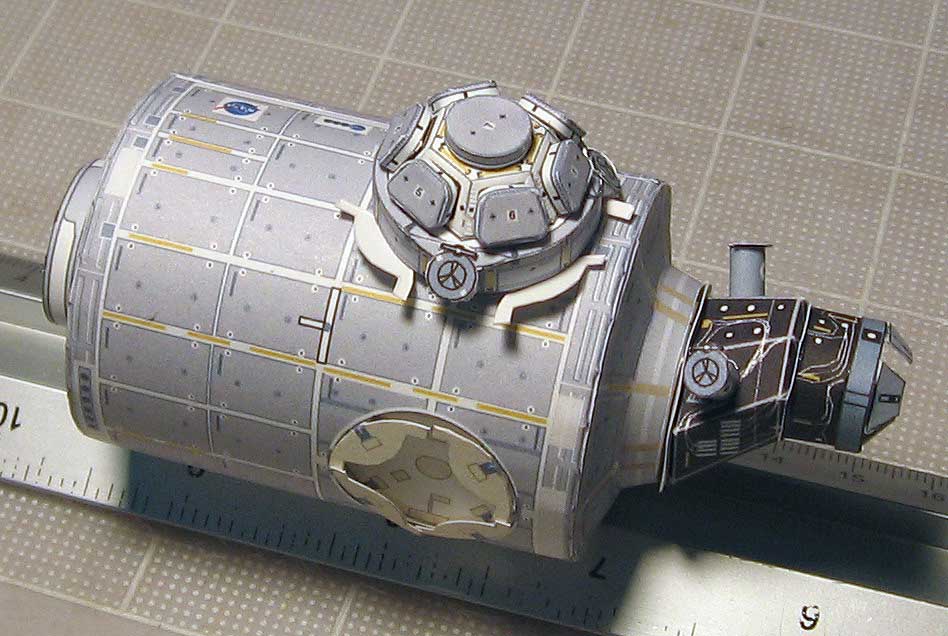

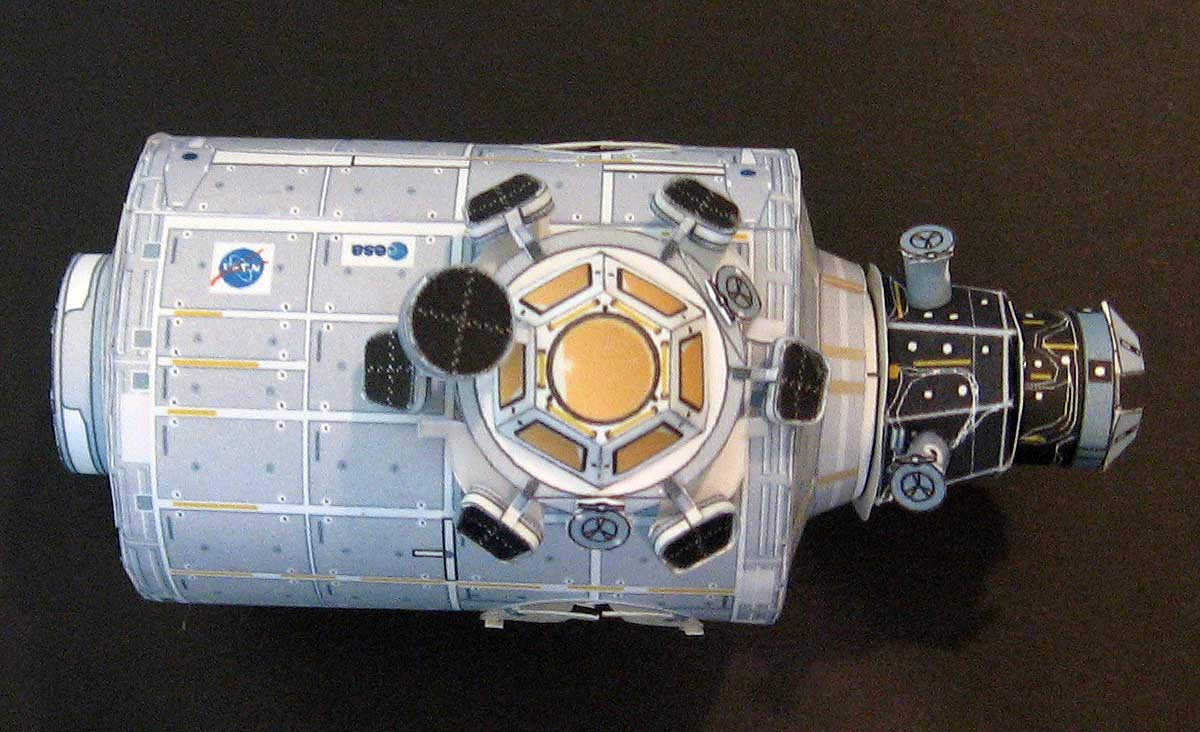

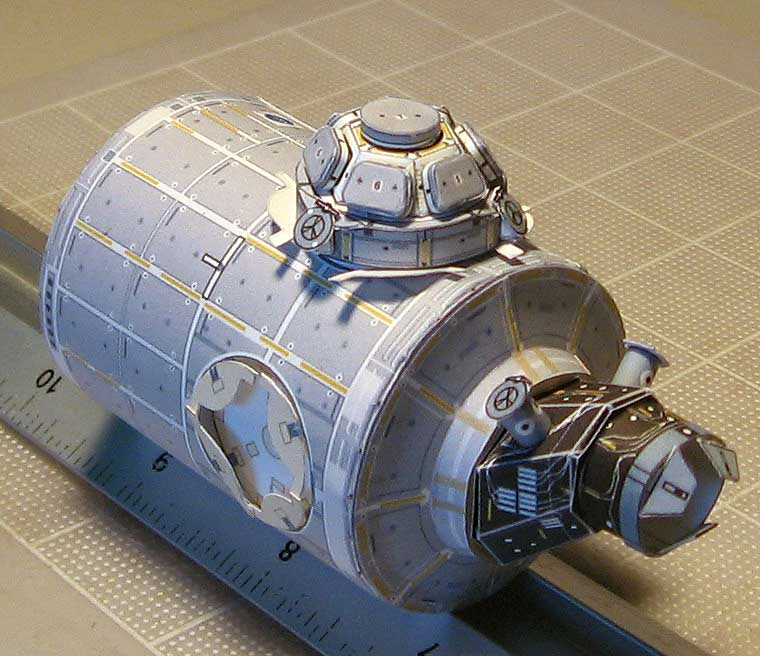

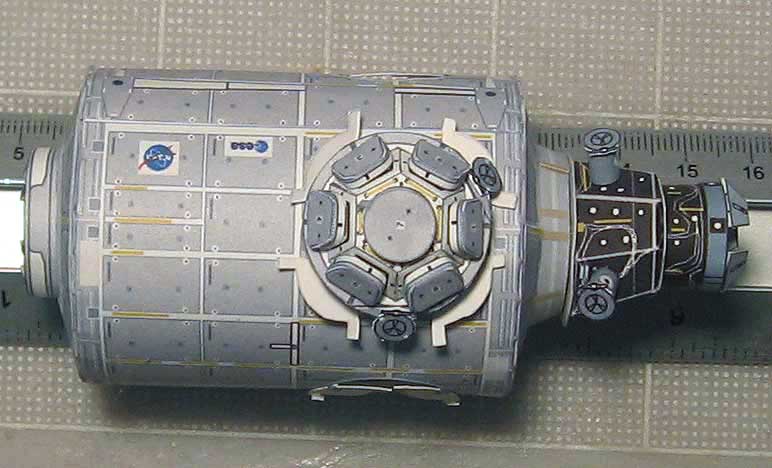

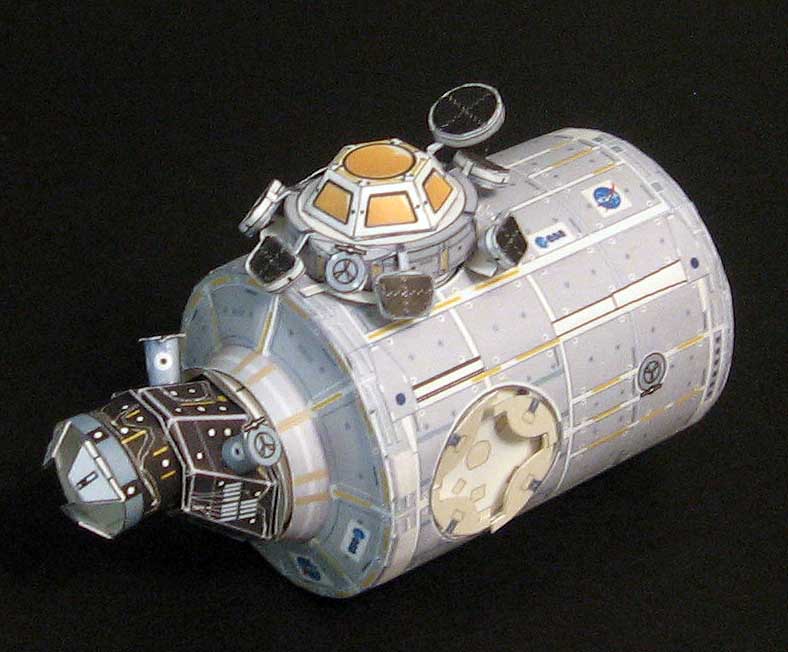

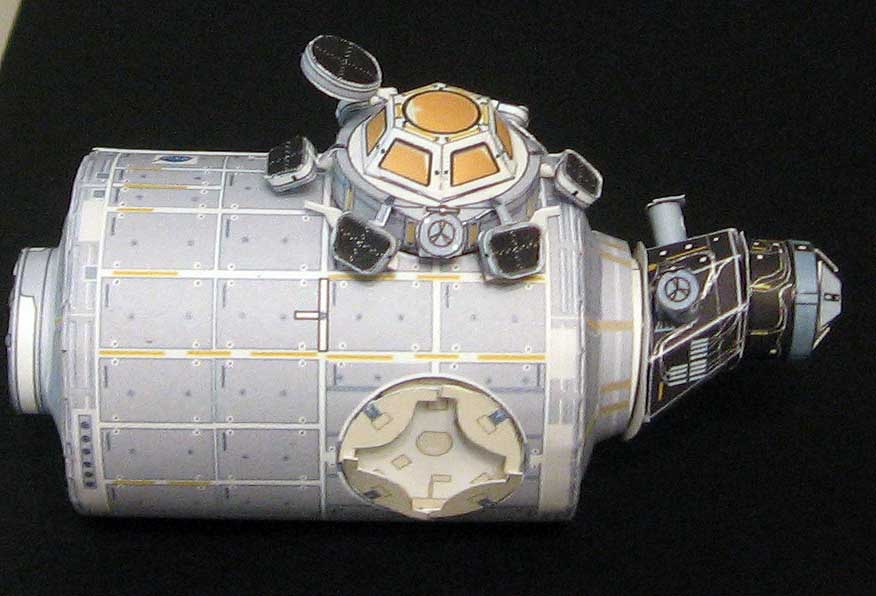

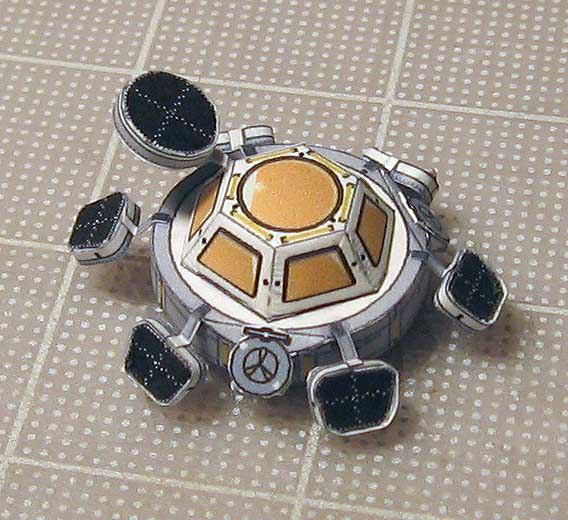

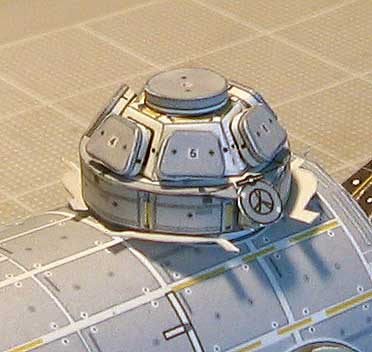

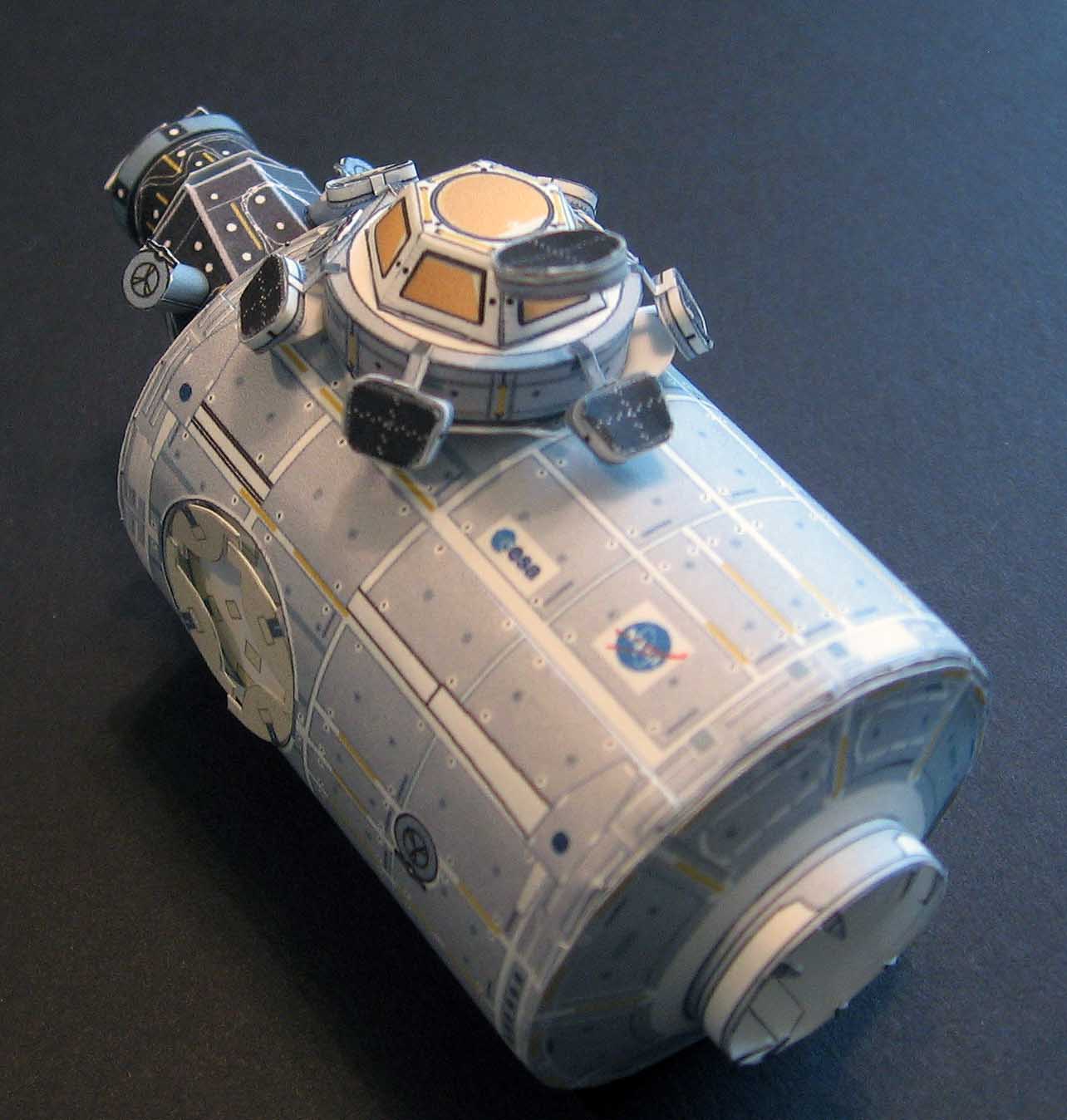

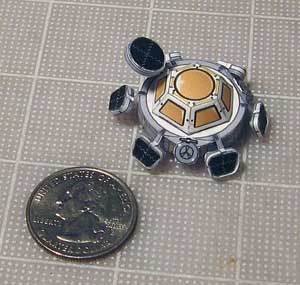

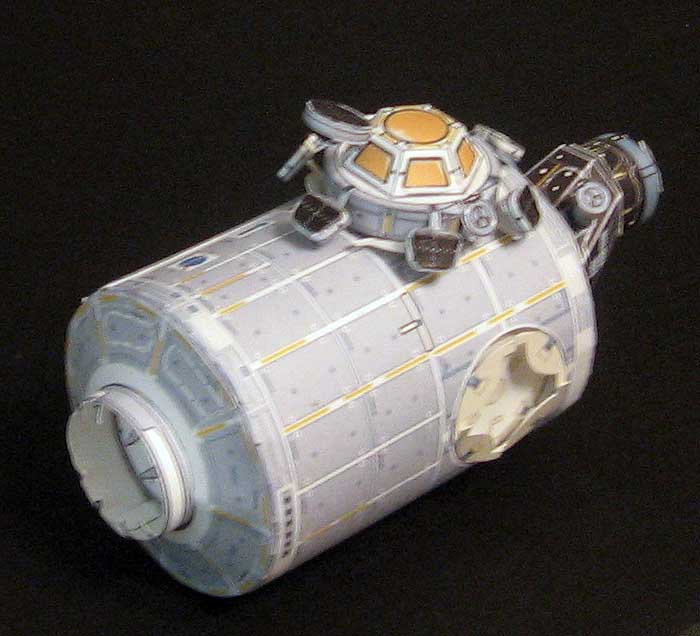

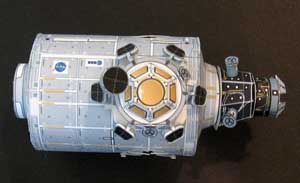

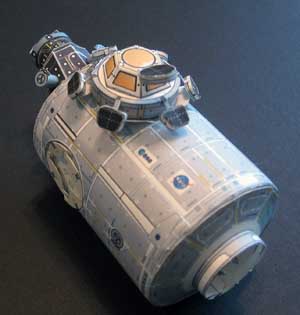

Node 3 / Cupola

















Zenith port modified as a base for DEXTRE

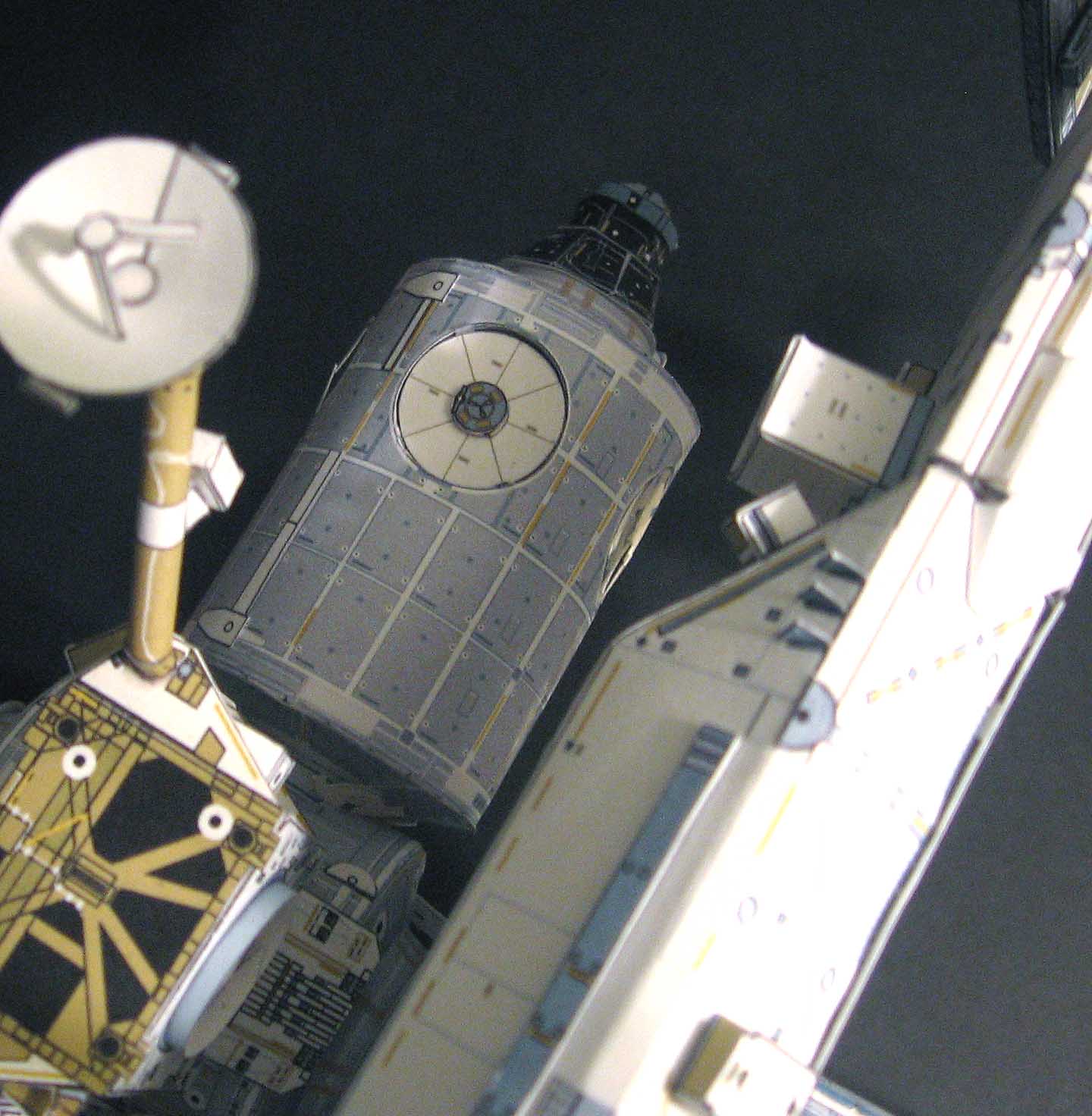

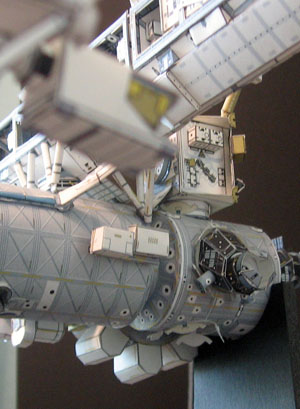

Aft view

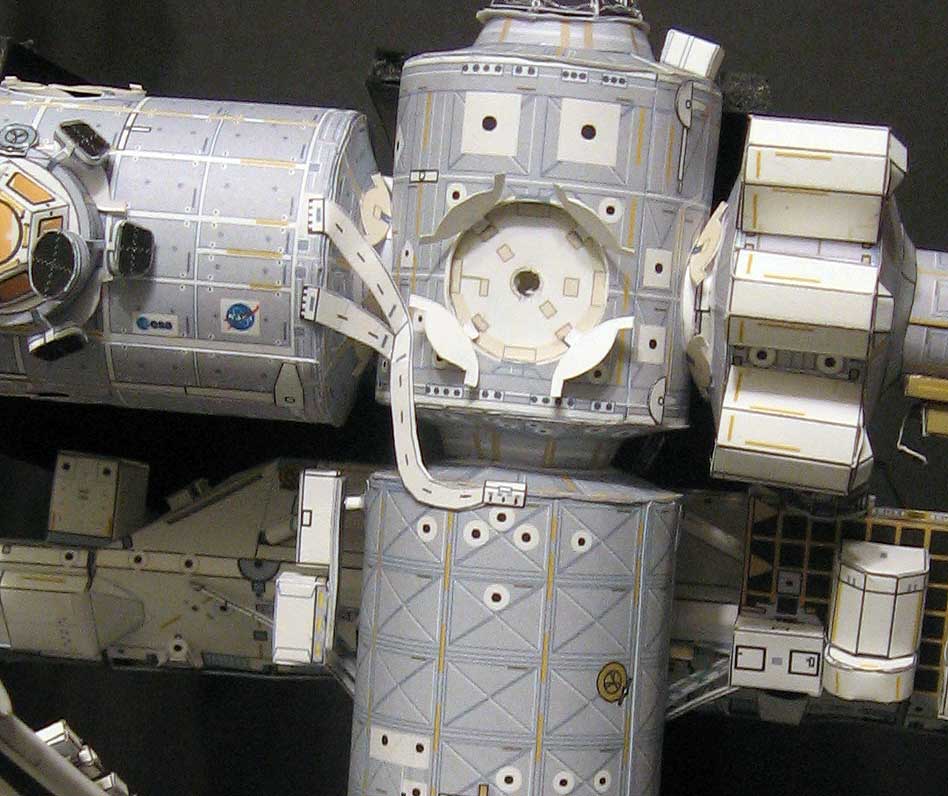

Node 3 Ammonia Umbilicals

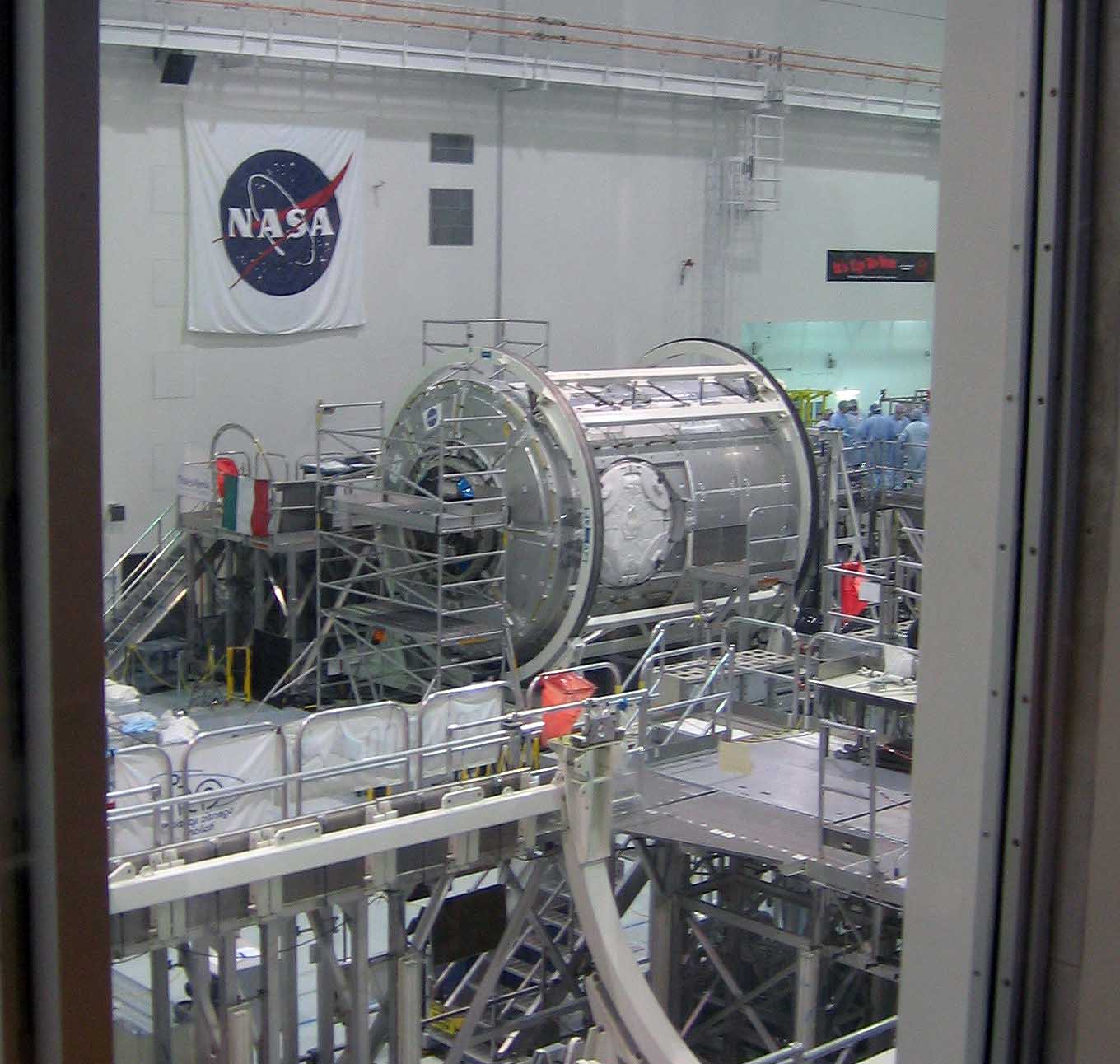

Photo of the real Node 3 at the ISS Processing Building during my trip to KSC on Aug 6, 2009

Photo property of AXM site







20A patch source: www.spacefacts.de
